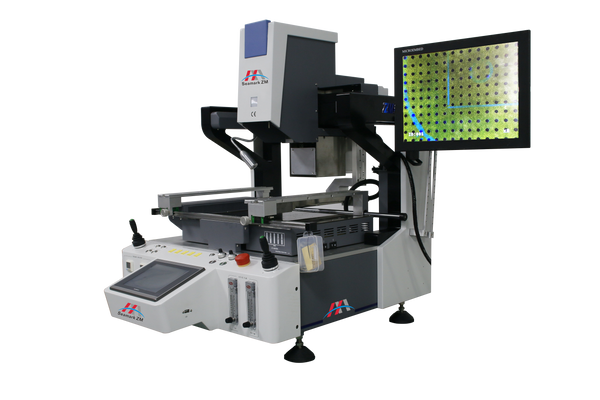

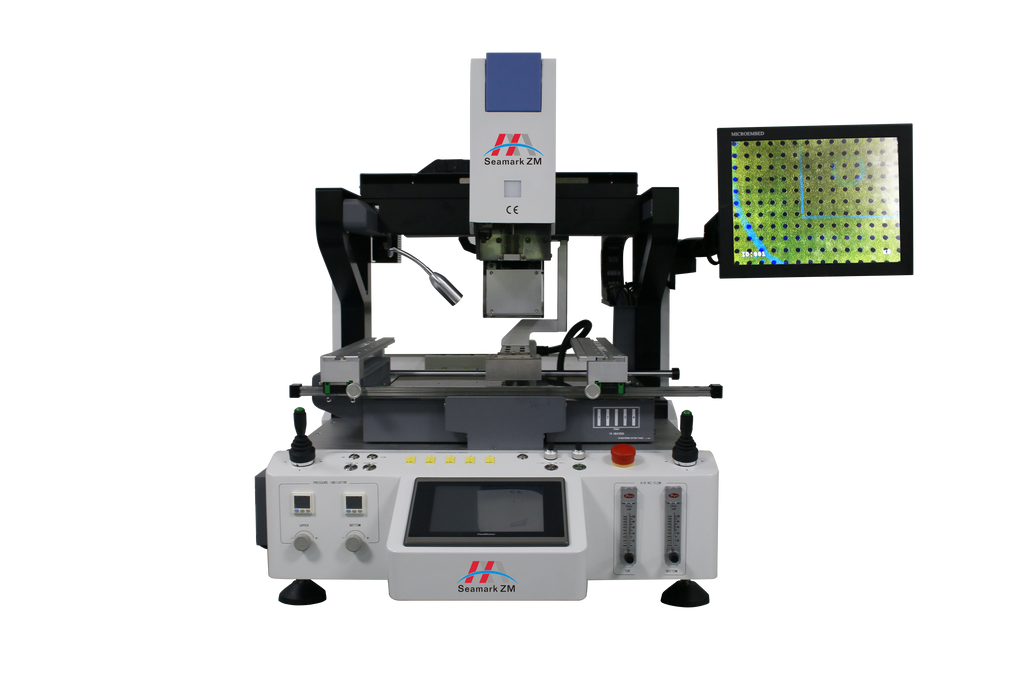

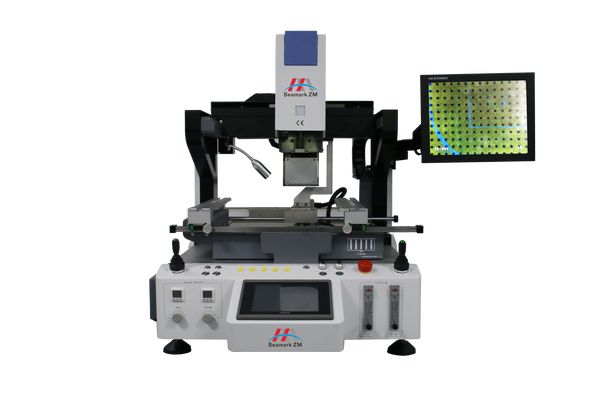

BGA & SMD Rework Station - Model ZM-R7830A
The Zhuomao ZM-R7830A BGA Rework Station is a high-end Nitrogen Capable Rework System. Great to help increase yield with Lead Free Solders and a no clean process. Place SMD components as large as 80mm with the high-resolution motorized vision system.
All of our systems include 1 year parts warranty and lifetime technical support from our USA based locations.
Prices subject to change. List price may not include Shipping, Tariffs, Duty or other County specific fees. Call for current pricing.
Call (530) 403-9103 for answers to your questions.
Specifications:
|
Power |
AC 380V 50/60Hz |
|
Total Power |
Max 6800W |
|
Heater power |
Top heater 800W, bottom 800W, IR 5000W |
|
Electrical materials |
Servo Drive system (Panasonic) +Panasonic PLC+8”Touch screen |
|
Temperature control |
K-type (Closed Loop) |
|
Positioning |
V-groove, PCB support + laser automatic positioning |
|
PCB size for |
Max 470×550mm Min 15×20 mm |
|
BGA chip for |
Max 80×80mm Min 2×2 mm |
|
Dimensions |
L890×W790×H1000mm |
|
Sensors |
4 |
|
Weight |
140kg |
-
Accessories: 4 top nozzles, 2 Bottom nozzles. Hardware for PCB boards, set of suction cups, external thermo-couple, auxiliary temperature sensors, auxiliary heating elements (1×hot air, 1×IR), monitor, operating and manual.
Allow 2 to 4 weeks for delivery.
