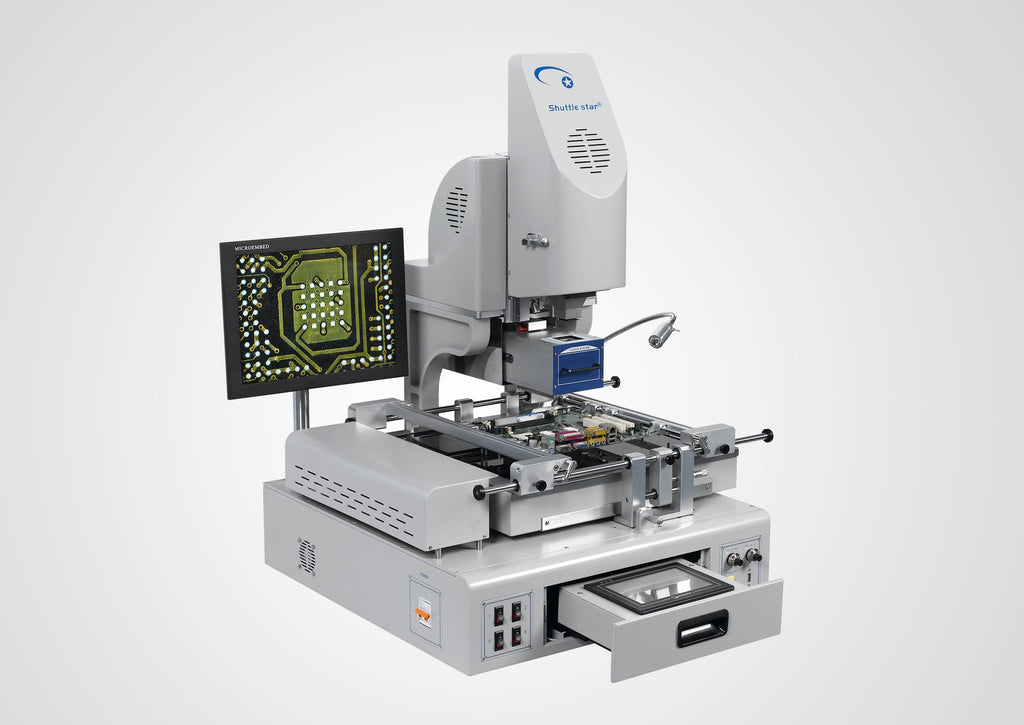

BGA Rework Machine - Model SV560
$22,150.00
Rework the largest boards from 36 inch wide to 36 layers. This High Definition, Split-Vision Optical System will remove and place components from .22mm to 90mm includng BGAs, CGA's, CSPs, QFPs, LGA's and Other SMDs. The 3600 watt Rapid-IR underheater is a critical feature to rework large PCB's with many layers or heavy ground planes.
Features:
- High Resolution 2 Mega Pixel HDMI Vision System
- Fits Boards up to 25" or upgradable to 36"
- Places components from .22m to 60mm
- 1200 watt component heater (Top Side)
- 800 watt component heater (Bottom Side)
- 6-zone 3600 Watt rapid-IR underheater.
- Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
- Color optical system with functions of split vision, zoom in/out and micro-adjust.
- Auto focus and software operation function with high-definition camera.
- HDMI - High-definition LCD monitor.
- Six Zone Rapid IR under heater.
- Fully self contained with PLC control. No need for external air.
- Plug in and ready to use.
- Lifetime Technical Support
- 1 Year Parts Warranty
- Installation, Set Up and Employee training is available at an additional fee.
Allow 2 to 3 weeks for delivery.
